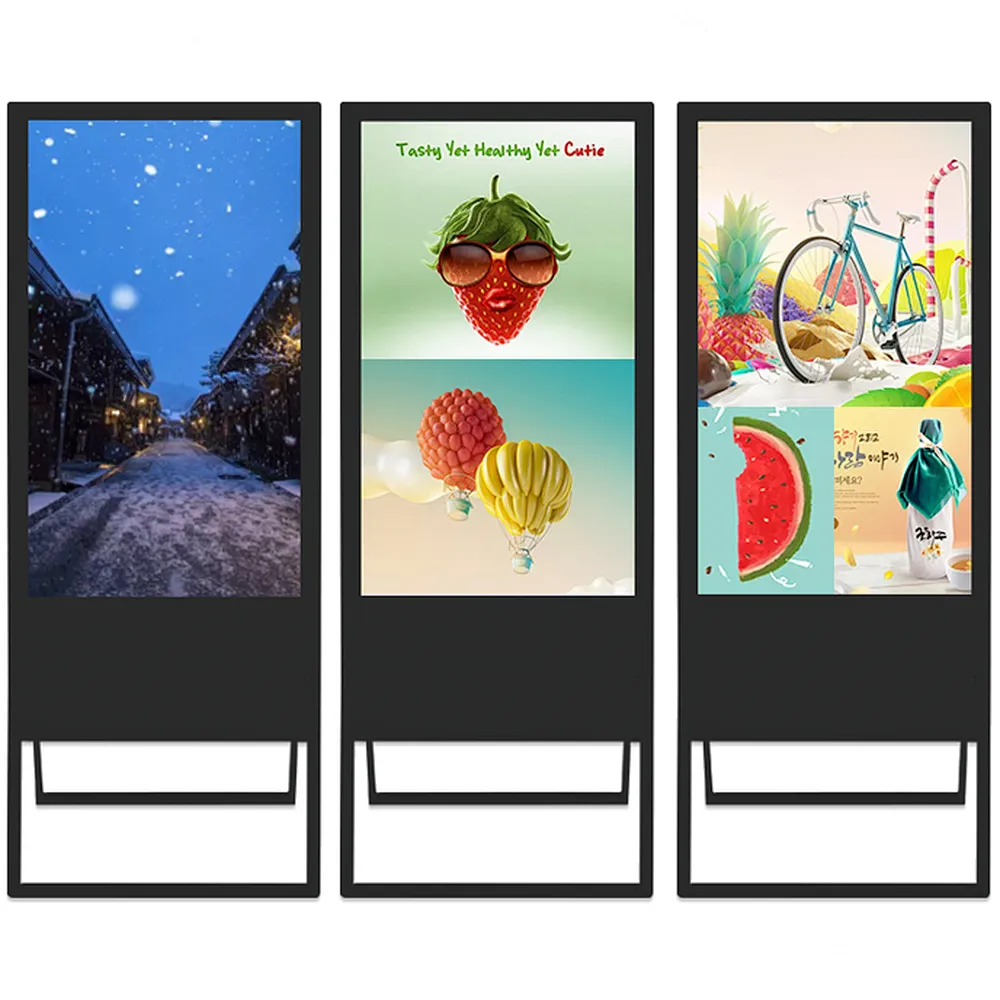

43" Portable Touch Screen Advertising Displays
AD-P4300T
Main Features:
This series of products are Apple-like appearance, whole-body hardware cold-rolled steel plate spraying, edge aluminum alloy profiles, panel 4MM special toughened glass, horizontal and vertical 16:9 liquid crystal screen, HD effect, can be widely used in building lobbies, hospitals, stations, hotels, subways, shopping malls, government buildings and other occasions, mainly used in multimedia information publicity, POP slide picture advertising, text, Audio and video media playback, is a high-end digital signage advertising products.
This series of products are Apple-like appearance, whole-body hardware cold-rolled steel plate spraying, edge aluminum alloy profiles, panel 4MM special toughened glass, horizontal and vertical 16:9 liquid crystal screen, HD effect, can be widely used in building lobbies, hospitals, stations, hotels, subways, shopping malls, government buildings and other occasions, mainly used in multimedia information publicity, POP slide picture advertising, text, Audio and video media playback, is a high-end digital signage advertising products.
Quantity
| Specifications | ||
| LCD Panel | Screen Brand | A+ New screen |
| Screen Size | 43 inch poster totem | |
| Display Ratio | 16:9 | |
| Resolution | 1920x1080 | |
| Brightness | 300cd/m2 | |
| Display Area | 940.2×528.4 mm (H×V) | |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) | |
| Lamp Lifetime | 50000 hours | |
| Function Configuration | Processor | CPU:A20, dual core, main frequency 1.0GHz (RK3128/RK3288/RK3399/RK3566/RK3568 optional) 43 inch poster totem |
| RAM 43 inch poster totem | 1G/2G/4G 43 inch poster totem 43 inch poster totem 43 inch poster totem 43 inch poster totem | |
| ROM 43 inch poster totem | EMMC 8G/16G/32G 43 inch poster totem 43 inch poster totem 43 inch poster totem | |
| Operation System | Android 5.1/6.0/7.1/9.0/10.0/11.0 Android system portable totem | |
| Touch Screen | Capacitive touch screen Android system portable totem Android system portable totem | |
| Resolution of Decoding | Maximum support 1080P Android system portable totem Android system portable totem | |
| Image Format | BMP, JPEG, PNG, and GIF are supported Android system portable totem | |
| Interface Support | USB2.0*2, HDMI output *1, TF card slot *1, RJ45 network port *1 | |
| System Support | Support USB/T card/network upgrade Android system portable totem | |
| Peripheral support (Optional) | 3G/4G Full Netcom module, camera, card reader and other wireless peripherals (optional) Android system portable totem Android system portable totem | |
| Network Support | Ethernet, wireless peripheral expansion Android system portable totem | |
| Video Format | It supports wmv, avi, flv, rm, rmvb, mpeg, ts, and mp4 | |
| Case Configuration | Case Material | Surface 3MM toughened glass, frame aluminum profile, back shell 1.5MM sheet metal. |
| Physical Dimension | 1586*612*80.51mm | |
| Environmental Requirements | Applicable Environment | Indoor 43 inch poster totem USB data input portable totemAndroid system portable totem |
| Operating Temperature | -20℃-40℃ USB data input portable totem USB data input portable totem USB data input portable totem | |
| Storage Temperature | -20℃～60℃ USB data input portable totem USB data input portable totem | |
| Electrical Configuration | Power Supply | AC（100－240）V/50－60HZ |
| Maximum Power Consumption | ＜100W | |
| Accessories | Remote control (single machine), AC power cable, carton | |
| Warranty Policy | Free warranty for one year, lifetime cost maintenance | |
| Main Functions Supported | 1.Support automatic playback upon startup. USB data input portable totem | |
| 2.The display screen plays multimedia content according to the predetermined working time and program schedule of the terminal. USB data input portable totem | ||
| 3. Display related graphic information according to the preset screen template. | ||
| 4.The supported playback modes include interstitial playback, specified time playback, and loop playback. USB data input portable totem USB data input portable totem | ||
| 5.Support pictures, videos, music, RSS, slides, web pages, text and other media styles. USB data input portable totem | ||
| 6.Support display of logo, date/time/week, weather forecast and timely subtitles. | ||
| 7.Support free split screen | ||
| 8.Support the parsing and processing of remote commands sent by the server, including advertising videos, image publishing, interstitising messages, restart terminal, sleep and wake up.Set the volume, remote online upgrade of the application, set the upper limit of the terminal download rate; Support 10/100M Ethernet /WIFI (150Mbps) | ||
