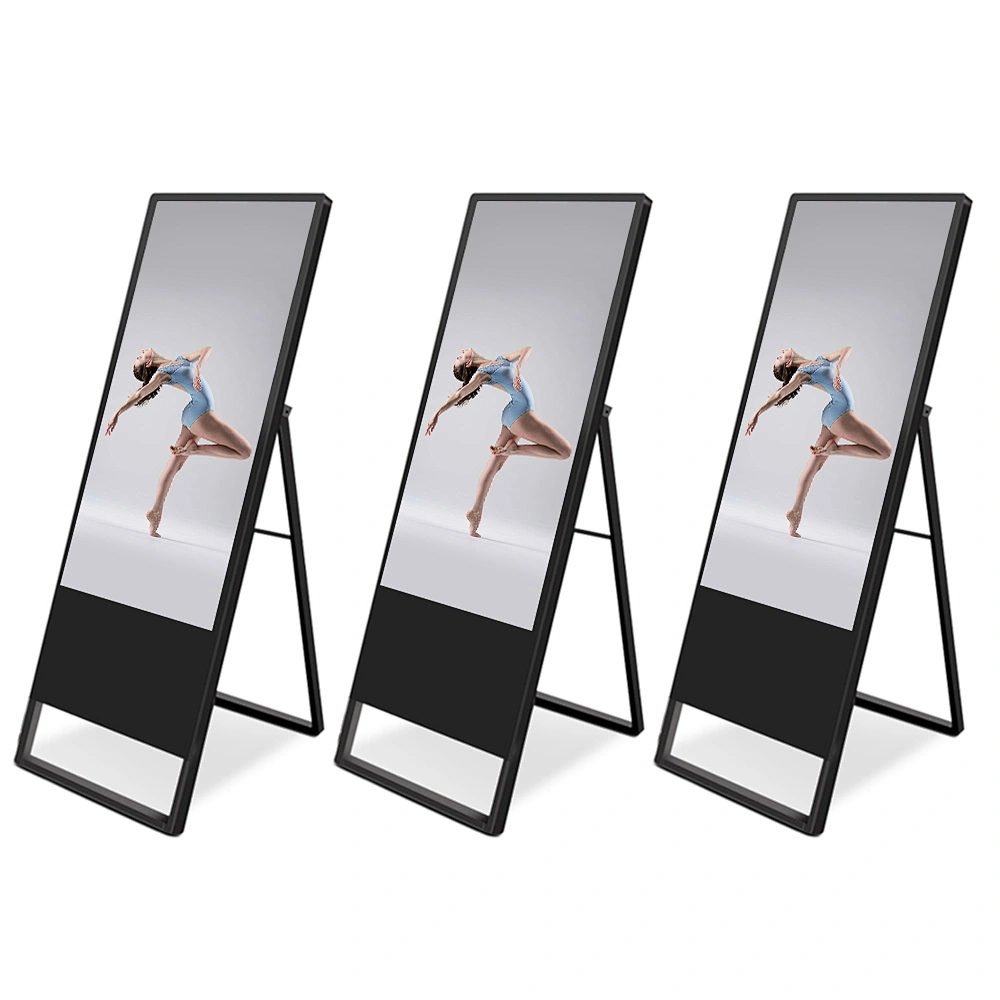

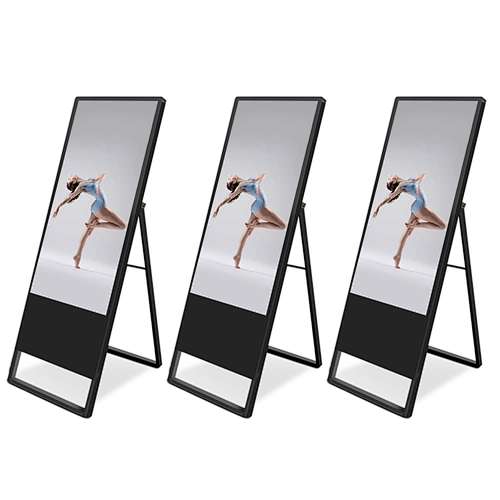

55" Portable Touch Screen Advertising Displays
AD-P5500T
Main Features:
This series of products are Apple-like appearance, whole-body hardware cold-rolled steel plate spraying, edge aluminum alloy profiles, panel 4MM special toughened glass, horizontal and vertical 16:9 liquid crystal screen, HD effect, can be widely used in building lobbies, hospitals, stations, hotels, subways, shopping malls, government buildings and other occasions, mainly used in multimedia information publicity, POP slide picture advertising, text, Audio and video media playback, is a high-end digital signage advertising products.
This series of products are Apple-like appearance, whole-body hardware cold-rolled steel plate spraying, edge aluminum alloy profiles, panel 4MM special toughened glass, horizontal and vertical 16:9 liquid crystal screen, HD effect, can be widely used in building lobbies, hospitals, stations, hotels, subways, shopping malls, government buildings and other occasions, mainly used in multimedia information publicity, POP slide picture advertising, text, Audio and video media playback, is a high-end digital signage advertising products.
Quantity
| Specifications | ||
| LCD Panel | Screen Brand | A+ New screen |
| Product Name | Factory Supply movable advertising display | |
| Screen Size | 55" | |
| Display Ratio | 16:9 | |
| Resolution | 1920x1080 | |
| Brightness | 300cd/m2 | |
| Display Area | 1208×679 mm (H×V) | |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) | |
| Lamp Lifetime | 50000 hours | |
| Function Configuration | Processor | CPU:A20, dual core, main frequency 1.0GHz (RK3128/RK3288/RK3399/RK3566/RK3568 optional) |
| RAM | 1G/2G/4G Factory Supply movable advertising display Factory Supply movable advertising display | |
| ROM | EMMC 8G/16G/32G Factory Supply movable advertising display Factory Supply movable advertising display | |
| Operation System | Android 5.1/6.0/7.1/9.0/10.0/11.0 | |
| Touch Screen | Capacitive touch screen Factory Supply movable advertising display Factory Supply movable advertising display | |
| Resolution of Decoding | Maximum support 1080P LED movable advertising display LED movable advertising display | |
| Image Format | BMP, JPEG, PNG, and GIF are supported | |
| Interface Support | USB2.0*2, HDMI output *1, TF card slot *1, RJ45 network port *1 | |
| System Support | Support USB/T card/network upgrade | |
| Peripheral support (Optional) | 3G/4G Full Netcom module, camera, card reader and other wireless peripherals (optional) LED movable advertising display LED movable advertising display LED movable advertising display | |
| Application | Factory Supply movable advertising display | |
| Network Support | Ethernet, wireless peripheral expansion | |
| Video Format | It supports wmv, avi, flv, rm, rmvb, mpeg, ts, and mp4 | |
| Case Configuration | Case Material | Surface 3MM toughened glass, frame aluminum profile, back shell 1.5MM sheet metal. |
| Physical Dimension | 1850*758.6*88mm | |
| Environmental Requirements | Applicable Environment | Indoor Factory Supply movable advertising display |
| Operating Temperature | -20℃-40℃ LED movable advertising display LED movable advertising display | |
| Storage Temperature | -20℃～60℃ LED movable advertising display LED movable advertising display | |
| Electrical Configuration | Power Supply | AC（100－240）V/50－60HZ |
| Maximum Power Consumption | ＜100W | |
| Accessories | Remote control (single machine), AC power cable, carton | |
| Warranty Policy | Free warranty for one year, lifetime cost maintenance | |
| Main Functions Supported | 1.Support automatic playback upon startup. | |
| 2.The display screen plays multimedia content according to the predetermined working time and program schedule of the terminal. | ||
| 3. Display related graphic information according to the preset screen template. | ||
| 4.The supported playback modes include interstitial playback, specified time playback, and loop playback. | ||
| 5.Support pictures, videos, music, RSS, slides, web pages, text and other media styles. | ||
| 6.Support display of logo, date/time/week, weather forecast and timely subtitles. | ||
| 7.Support free split screen | ||
| 8.Support the parsing and processing of remote commands sent by the server, including advertising videos, image publishing, interstitising messages, restart terminal, sleep and wake up.Set the volume, remote online upgrade of the application, set the upper limit of the terminal download rate; Support 10/100M Ethernet /WIFI (150Mbps) | ||
